2025 Isuzu F Series

ISUZU FVY 260-300 AT R67

Heavy Duty 6x4 Cab Chassis

VEHICLE OVERVIEW

Model: FVY 260-300 AT R67
GVM: 26,000 kg
GCM: 36,000 kg
Wheelbase: 6,655 mm
Engine: Isuzu DB6A-TCC 6 Cylinder Turbo Diesel
Power: 221 kW @ 2,200 rpm
Torque: 984 Nm @ 1,000 - 2,100 rpm
Transmission: Allison 3500 GEN 6 6-Speed Automatic Transmission (AT)

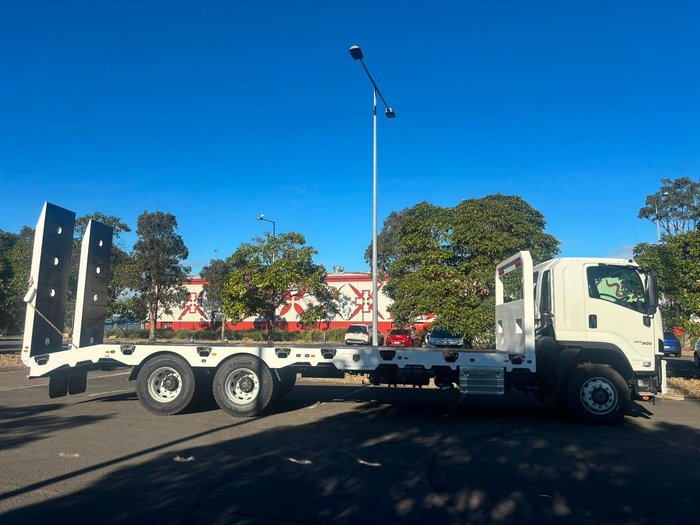

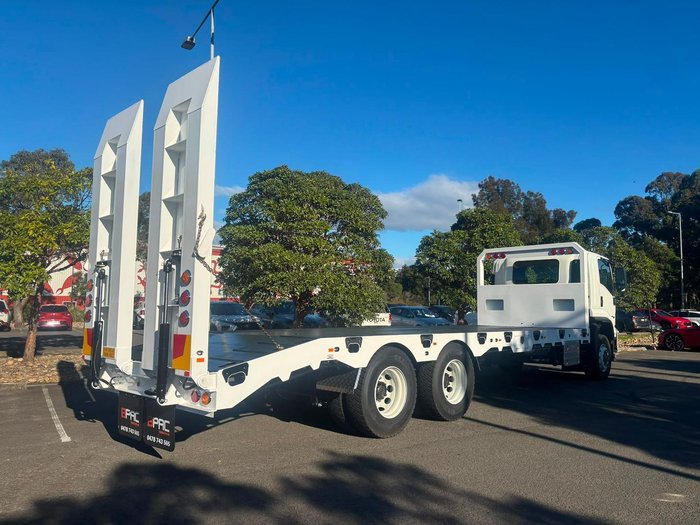

BPAC FABRICATIONS BEAVERTAIL – HEAVY DUTY SPECIFICATION

Body & Dimensions
• 8700mm Approx. External Body Length
• 7300mm Approx. Internal Deck Length
• 1130mm Approx. Deck Height
• 1300mm Approach Ramp
• Heavy-duty beavertail configuration designed for plant and machinery transport
Deck & Floor Construction
• 4mm 450 Grade Steel Floor
• 4mm 450 Grade Steel Ramps
• Flush Side Coamings for a clean, low-profile finish
• Integrated Tie-Down Points throughout deck and side coamings
• 9 x Tie-Down Points to the Top Deck of Each Side
• 8 x Tie-Down Points Centrally Located in the Tray
• 14 x Stainless Steel Tie-Down Point Surrounds
• Provision for Winch Installation
• Lockable Winch Lid
Loading Ramps
• 2800mm x 900mm Heavy-Duty Loading Ramps
• Rear Drop-Down Loading Legs for Additional Stability During Loading
• Rear Ramp Air Tensioners for Secure Ramp Retention During Transit
Hydraulic System
• Dedicated Hydraulic Power Pack
• Raise / Lower / Float Valve
• Hydraulic system designed for controlled body and ramp operation
Toolboxes & Storage
• Integrated Toolboxes Built into Side Coamings
• Underbody Lockable Toolbox
• Approx. 900mm L x 450mm D x 450mm W
• Additional secure storage for chains, straps and loading equipment
Accessories & Finishing
• Side Steps for Easy Access to Deck
• Heavy-Duty Fabricated Construction
• Sandblasted and Zinc Primed
• Powder-Coated Finish for Enhanced Durability and Corrosion Protection
Overall Specification
• Purpose-built for heavy-duty plant, machinery and equipment transport
• Robust 450 Grade steel construction throughout deck and ramps
• Fully integrated tie-down, storage and loading features
• Designed for durability, ease of operation and long-term commercial use

FEATURES

ADR 80/04 (Euro VI) Compliant
Adaptive Driving Beam (ADB)
Bi-LED Headlamps with Daytime Running Lamps (DRL)
ECE-R29 Cab with Side Anti-Intrusion Beams
ISRI 6860/875 NTS2 Air Suspension Driver's Seat
Engine Compression Brake (I-Brake)

CHASSIS

Front Axle Capacity: 7,300 kg
Rear Axle Capacity: 20,000 kg
Fuel Tank: 200 L Aluminium
AdBlue Tank: 65 L High-Density Polyethylene
Front Axle Tyres: 315/70R22.5 156/150L Michelin X Multi Energy Z2
Rear Axle Tyres: 11R22.5 148/145L Michelin X Multi D+

CABIN

Automatic Climate Control
ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation
10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with Daytime Running Lamps (DRL)
LED Front Fog Lamps
LED Tail Lamps
Reverse Alarm

WARRANTY & SERVICE

Chassis Warranty: 6 Years / 500,000 km / 10,000 Engine Hours
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km
