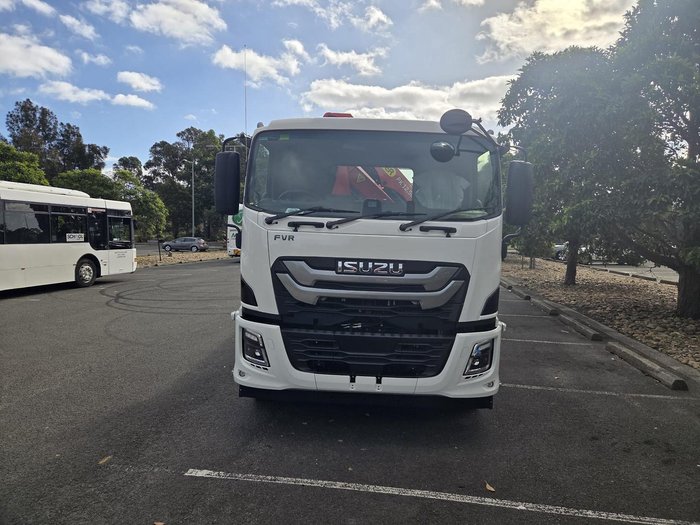

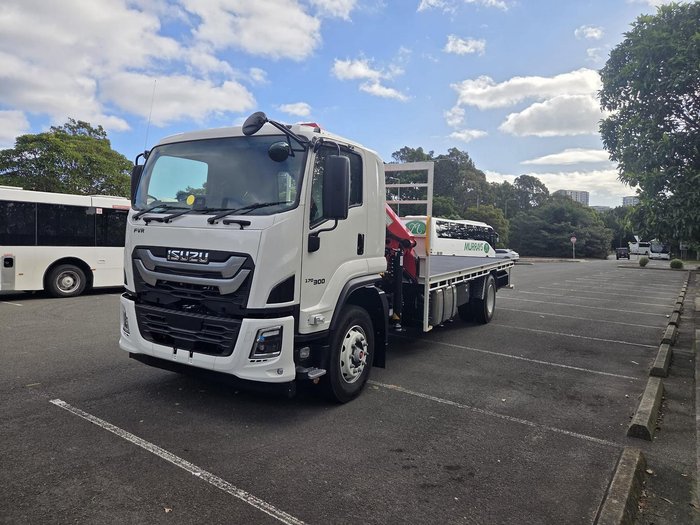

2025 Isuzu F Series

ISUZU FVR 170-300 AT R60

Heavy Duty Cab Chassis


VEHICLE OVERVIEW

Model: FVR 170-300 AT R60
GVM: 17,000 kg
GCM: 32,000 kg
Wheelbase: 6,000 mm
Engine: Isuzu DB6A-TCC 6 Cylinder Turbo Diesel
Power: 221 kW @ 2,200 rpm
Torque: 984 Nm @ 1,000 - 2,100 rpm
Transmission: Allison 3000 GEN 6 6-Speed Automatic Transmission (AT)

PALFINGER PK 12.501 SLD 5 Extension C Front Mount Crane

Lifts 2650kg @4m
Lifts 1700kg @5.9m
Lifts 1240Kg @7.8m
Lifts 770kg @11.9m

Make an enquiry to discuss this crane truck further

NEW AGE TRUCK BODIES

Heavy duty steel tray
6500mm overall length
2495mm overall width
10 pallet space capacity.
5mm steel chequer plate floor, sheets painted black with 20mm combing.
100mm channel main runners.
75 x 40mm channel cross bearers welded to the main runners.
100 x 50mm channel side combing rails.
Heavy duty Rope rail pipe to full length of body on each side of the body 75mm below the combing rails.
Pipe or RHS stirrup steps with chequer plate foot platforms on each side of the body at the front – front & rear.
2 x underbody toolboxes.
5 x Underbody sling winches.
Heavy Duty Headboard.
Heavy duty RHS steel constructed frame
600mm high 3mm steel chequer plate kick late at the base of the headboard
Grab handles located on the headboard for climbing access with ladder style steps,
Aluminium propeller plate mudguards with steel supports each side of the rear wheels
Rear step.
All compulsory mudguards, reflectors, marker plates, etc.
Engineers certificate.


FEATURES

ADR 80/04 (Euro VI) Compliant
Adaptive Driving Beam (ADB)
Bi-LED Headlamps with Daytime Running Lamps (DRL)
ECE-R29 Cab with Side Anti-Intrusion Beams
ISRI 6860/875 NTS2 Air Suspension Driver's Seat
Engine Compression Brake (I-Brake)


CHASSIS

Front Axle Capacity: 7,300 kg
Rear Axle Capacity: 10,400 kg
Fuel Tank: 200 L Steel
AdBlue Tank: 65 L High-Density Polyethylene
Front Axle Tyres: 315/70R22.5 156/150L Michelin X Multi Energy Z2
Rear Axle Tyres: 11R22.5 148/145L Michelin X Multi D+


CABIN

Automatic Climate Control
ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation
10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with Daytime Running Lamps (DRL)
LED Front Fog Lamps
LED Tail Lamps
Reverse Alarm


WARRANTY & SERVICE

Chassis Warranty: 6 Years / 500,000 km / 8,000 Engine Hours
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km

We are one of Sydney’s most convenient and trusted truck dealerships, located just 10 minutes from Sydney Airport and only 400 metres from Wolli Creek train station. We make buying, selling, and servicing your truck simple.

If you're looking to sell, we offer free truck valuations with an onsite valuer / buyer providing obligation-free market appraisals—receive a competitive offer based on current market data.
As an authorised Isuzu dealer, we’ve partnered with Qantas Business Rewards so your business can earn Qantas Points when purchasing Isuzu truck parts and accessories. We also offer Isuzu Service Agreements at the time of your truck purchase, helping you turn servicing into predictable, manageable costs. Plus, when you purchase a new Isuzu truck, your first service is free.

To keep your business moving, our workshop provides after-hours servicing until 7pm, giving you more uptime and less downtime.

IS THIS NOT THE PERFECT TRUCK FOR YOU? We keep a range of trucks in stock ready to work, available now for delivery. Send an enquiry so we can find what you need.
NEED SOMETHING CUSTOM? We have trucks ready to build - so we can craft a truck exactly to what your business requires. Send an enquiry so we can build what you need.
We are Isuzu experts and are confident we can find the right truck for you and your business.
